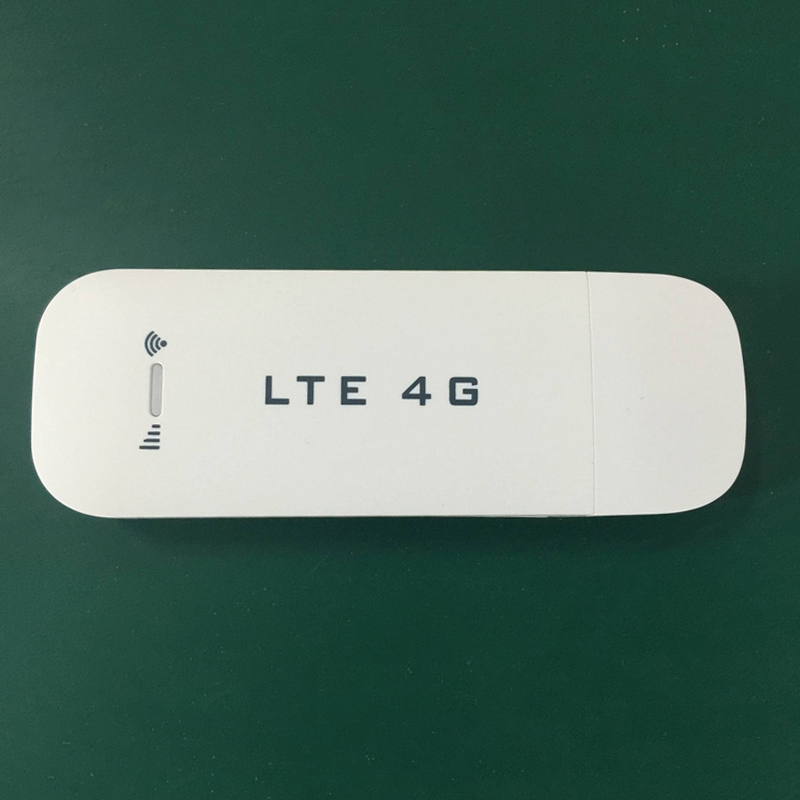

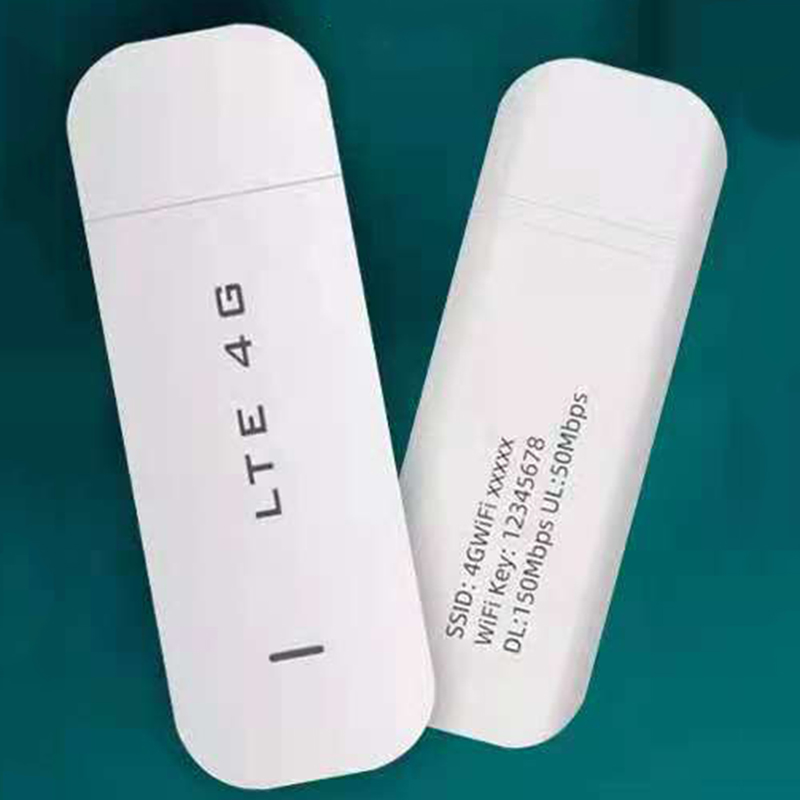

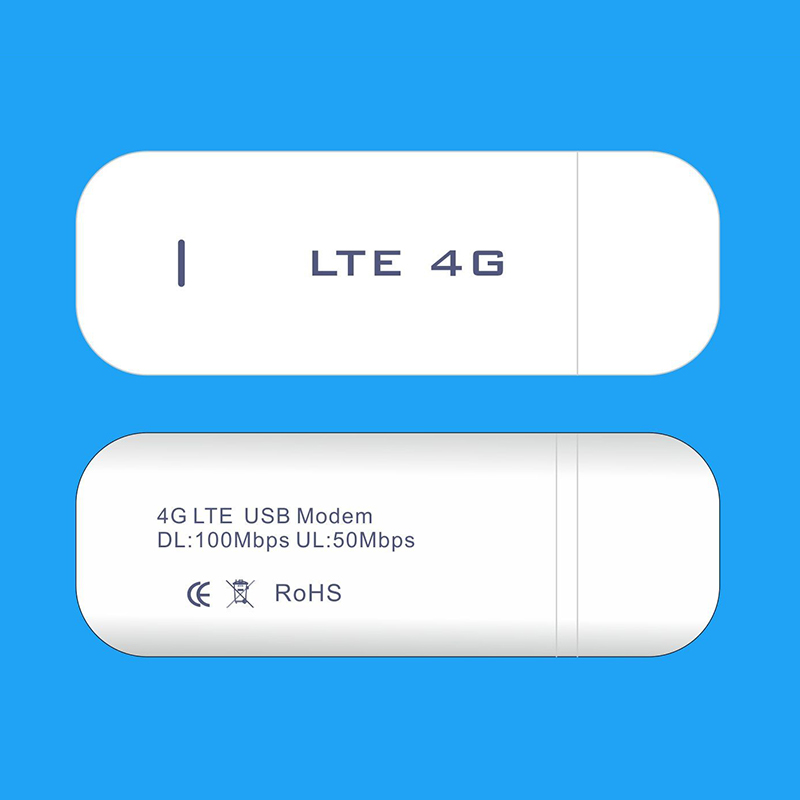

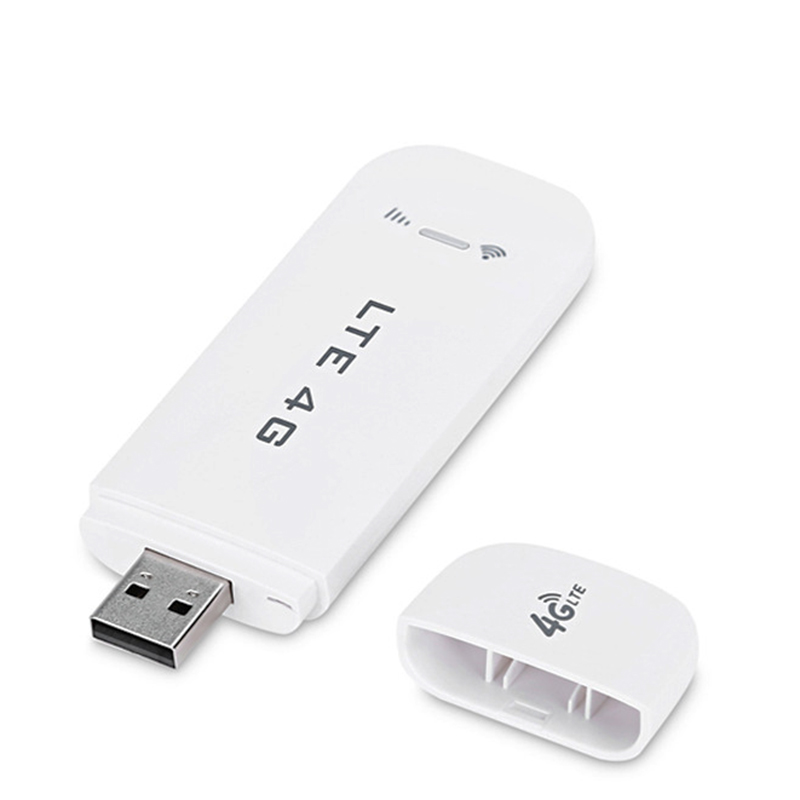

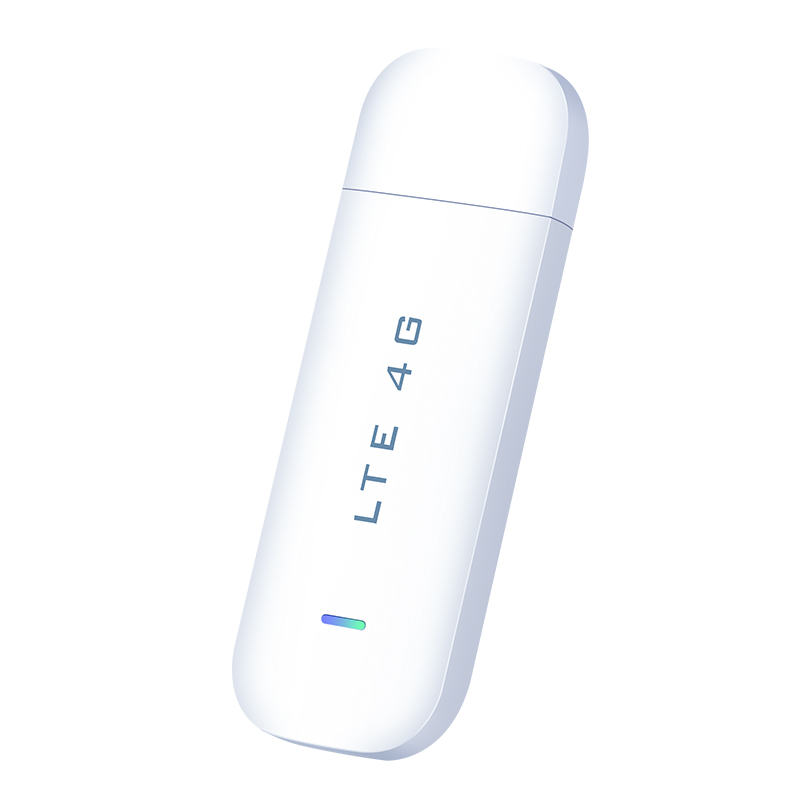

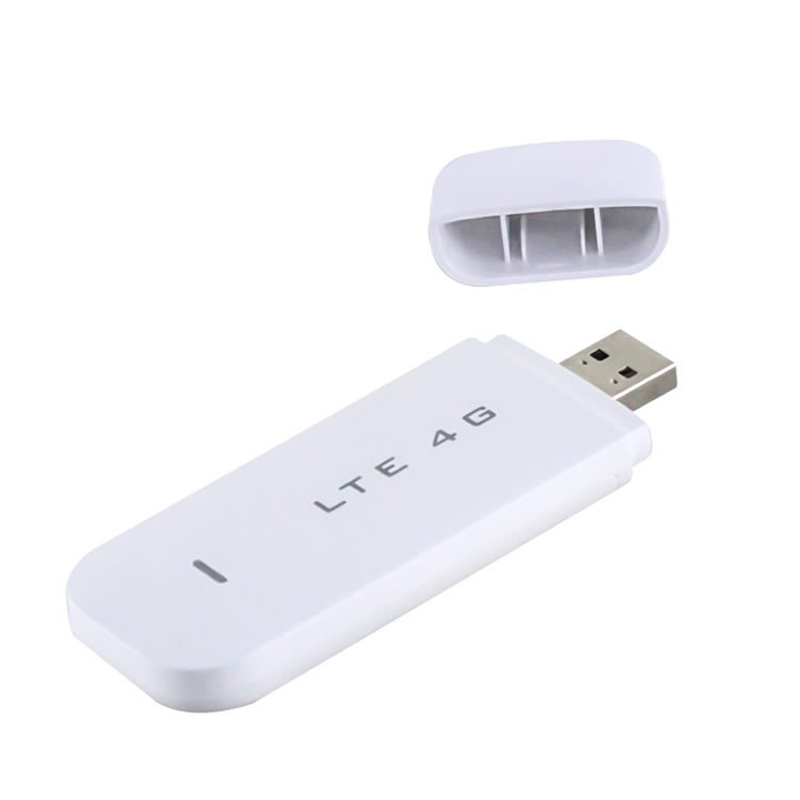

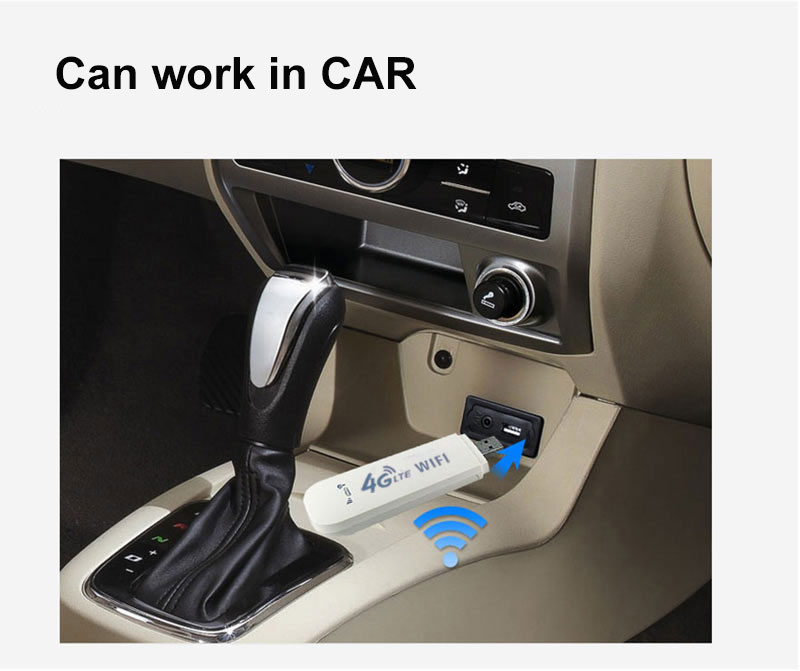

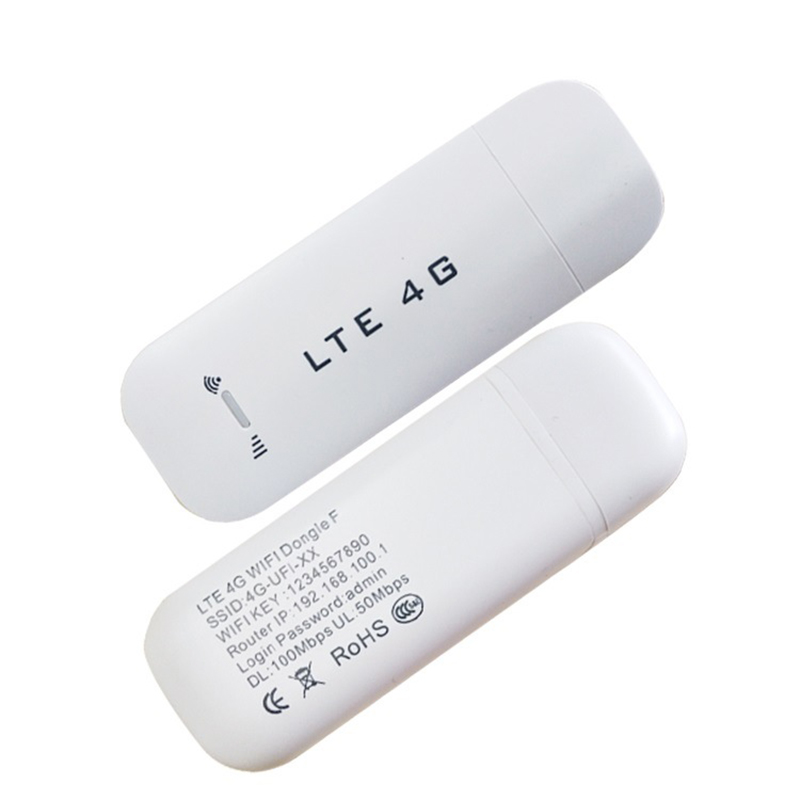

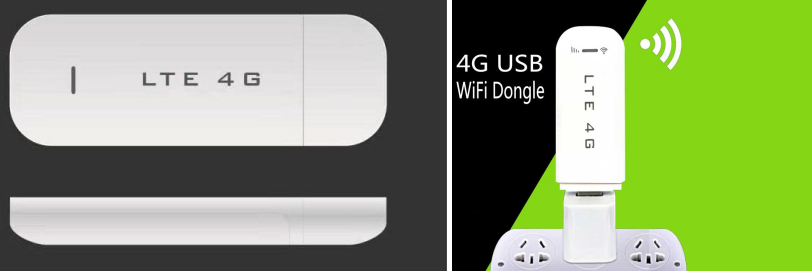

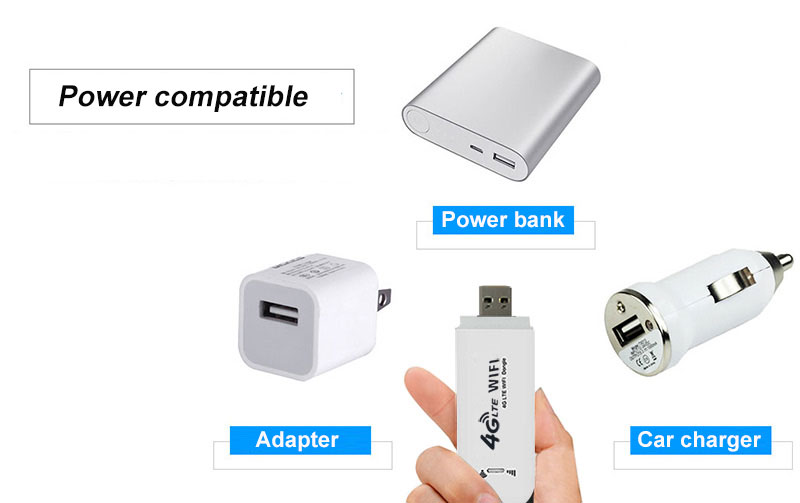

This is a 4G WiFi Dongle,supporting multiple 4G networks, internet sharing up to 10 wifi users. Powered by devices with USB port via such as phone charger/car charger,/power bank,etc. After inserting a SIM Card and powering it on, you can enjoy 4G network to surf the Internet anytime and anywhere.
Specification
Selling Point:
1.【Instructions for Use】 It's not only a USB modem, but also a WiFi hotspot, so you can enjoy WiFi with family and friends. No need to connect to broadband,just need a 3G/4G SIM card,you can connect to network.

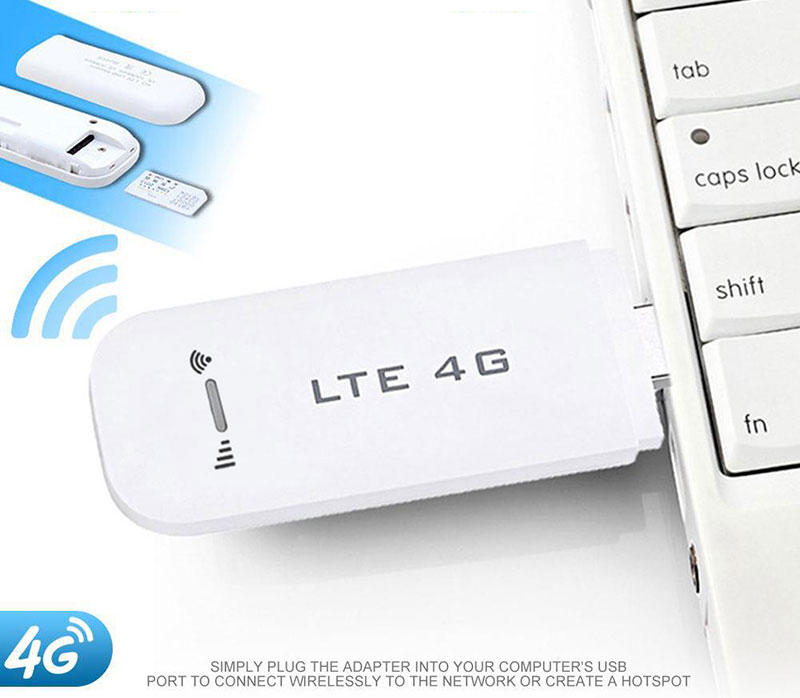

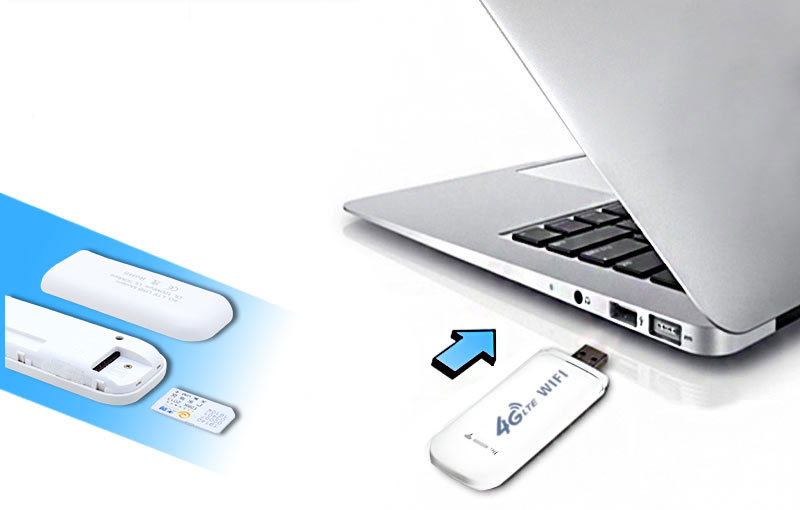

2.【Easy to Use】Plug and play hotspot modem, as long as there is power, you can easily go online. Simply plug directly into the laptop's USB port to transfer data. And at the same time,you can also easily connect to WiFi whether it's your cell phone, laptop, desktop or tablet.
3.【High Speed Transmission Signals】 With a wireless connection speed of up to 150Mbps, you can enjoy a powerful web experience for surfing, chatting or playing online games. The superior range. Built-in 4G/3G+WiFi antenna for optimal coverage and reliability, as well as increased signal strength, so you can enjoy a reliable wireless connection anytime, anywhere
4.【Multi-Device Sharing】The sim card dongle supports access to 10 devices. As long as there are WiFi-enabled devices, they can be connected and used, such as mobile phones, smart robots, iPads, sweeping robots, smart speakers, cameras, TVs, computers, etc.
5.【Increase Coverage】This SIM card router uses 4G Internet access via SIM card. Increase WiFi coverage area and eliminate network dead angle.
6.【IMEI change function】Users can change this router's IMEI. This is a hidden function for professional users to do tests, we don't suggest ordinary users to change device's IMEI to simulate other network device to acquire cheap Internet traffic , and we won't provide technical support to such move.
7.【WiFi shutdown/hide】You can closed the WiFi function or hide the WiFi signals on the web page
Short description
This is a 4G WiFi Dongle,supporting multiple 4G networks, internet sharing up to 10 wifi users. Powered by devices with USB port via such as phone charger/car charger,/power bank,etc. After inserting a SIM Card and powering it on, you can enjoy 4G network to surf the Internet anytime and anywhere.
Simply introduction
1. This is a wireless modem with sim card slot and 4G hotspot wifi. It uses a Qualcomm MSM8916 chip and support 2.4GHz with up to 150Mbps data transfer rate
It works under 4G networks and is also compatible with 3G networks because it has a number of band options that allow it to work in many countries. Its frequency band is as follows:FDD B1/2/4/5/7/8/(12)17/40
2. It supports 10 users at the same time, mobile phone, IPad, laotop, computer, smart tv and other devices to access the Internet.

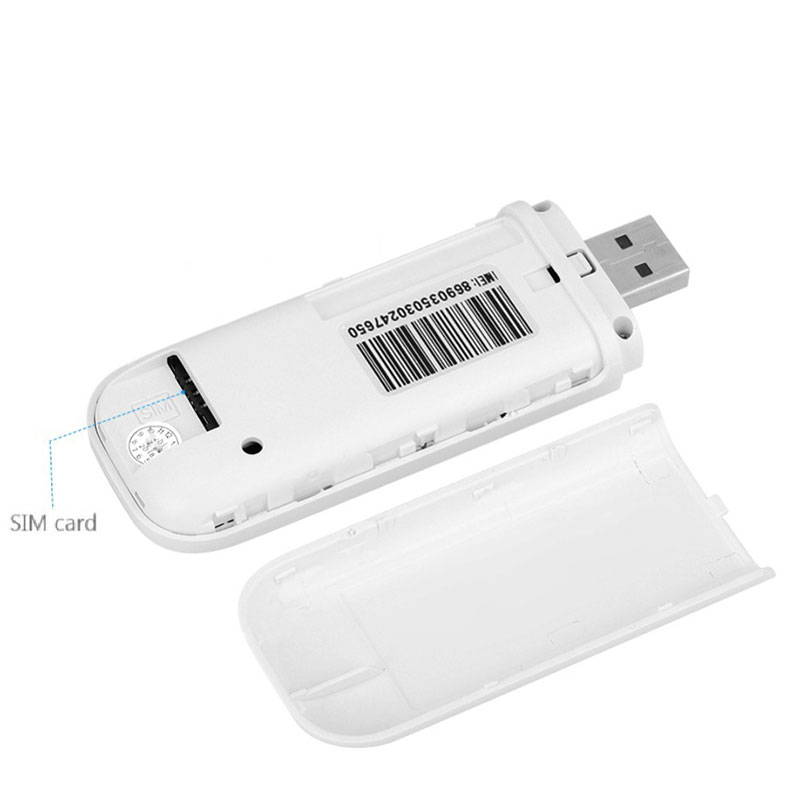

3. This is a plug and play device, convenient USB power supply mode, connect power supply devices, insert the sim card, using sim data to surf the internet anytime and anywhere.
Key Features
1.Various function: Not only a 4G USB modem, but also a USB Wi-Fi router. As a model, it acts like a network card, providing hot spots to devices like computers that cannot connect to broadband, and as a router, when it can provide network connections to any device with WiFi capabilities in the home
2.Strong compatibility: It can be applied not only to 4G networks, but also to backwards compatibility 3g networks, and many frequency bands can be added.3.Convenient and portable, 4G DONG001 is easy to use and stylish.
4.Fast network speed and stable signal: Support 10 users to share the network at the same time without any connection interruption, you are working, playing games, watching live broadcast, brush video can also surf the Internet at high speed.

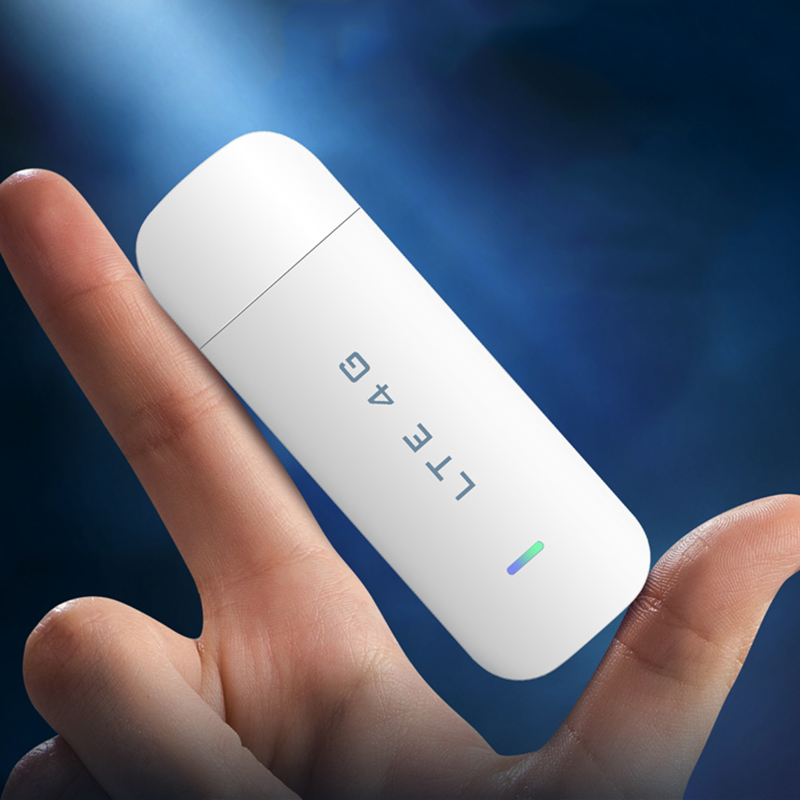

5.Easy to carry: small body size, you can put it in the pocket, You can even take it to travel.
6.Easy to use:Simply insert a SIM card to act as a wireless router, no setup required.
Detailed features:
Connectivity: 4G&3G and Wi-Fi
WiFi Transmission rate:150mbps based on 802.11 b/g/n
Speed:FDD LTE:up to 150Mbps DL / up to 50Mbps UL
HSDPA:up to 42.2Mbps DL
HSUPA:up to 11.5Mbps UL
FDD LTE:3GPP R9 Cat.4
TDD LTE:3GPP R9 Cat.4
HSDPA:3GPP R7&R8 Cat.24(64QAM)
HSUPA:3GPP R7&R8 Cat.7(16QAM)
Frequency:
4G FDD LTE B1/B3/B5(Default bands)
4G FDD LTE B1/B3/(B5)/7/8/20+TDD B38/40/41(European bands)
FDD-LTE/TDD-LTE: UL 50M / DL 100Mbps
DC-HSPA+: UL 5.76M / DL 42Mbps
OS supported:32/64Bit: Windows2000/2003/XP/Vista/7/8/10/11;Mac OS X 10.4 or later/LINUX(on WiFi)
Multi language(Indonesian,Russian,Portuguese etc)
Standard USB 2.0 high speed, easy USB charger
Input Voltage: 5V/1A, Max Power consumption: <2W
Package Including:
1x 4G LTE USB Dongle (the sim card not including)
1 x User manual
Please notice:
Please check the frequency of the sim card Compared with our goods, if you do not know the frequency.
If the frequency is right ,but can not Connect automatic, for this can enter the ip address ,then setting the APN of the sim
If signal is unstable, you can also manage the settings page, lock 4G or 3G network, can effectively improve the stability of the network.
Model No.: F26S 4G Wifi Dongle(150Mbps DL / 50Mbps UL) | ||
Chipset | Qualcomm MSM8916 | |
Network supported | 4G LTE | FDD B1/2/4/5/7/8/(12)17/40 |
3G WCDMA: | B1-2100(B5-850/B8-900 can be added) | |
Wifi | support 10 users to share the wifi | |
802.11b/g/n, speed upto 150Mbps | ||
2412MHz-2472MHz | ||
Speed | FDD LTE | up to 150Mbps DL / up to 50Mbps UL TDD can be added |
HSDPA | up to 42.2Mbps DL | |
HSUPA | up to 11.5Mbps UL | |
3GPP | FDD LTE | 3GPP R9 Cat.4 |
TDD LTE | 3GPP R9 Cat.4 | |
HSDPA | 3GPP R7&R8 Cat.24(64QAM) | |
HSUPA | 3GPP R7&R8 Cat.7(16QAM) | |
Port | USB | 1 |
USIM/SIM | 1 | |
Others | Hardware interface | USB interface |
Sensitivity | <-105dBm (FER≤0.5%) | |
Working voltage | 5V DC | |
Working current | 280~1000mA | |
Sleep Current | <50mA | |
Language | English | |

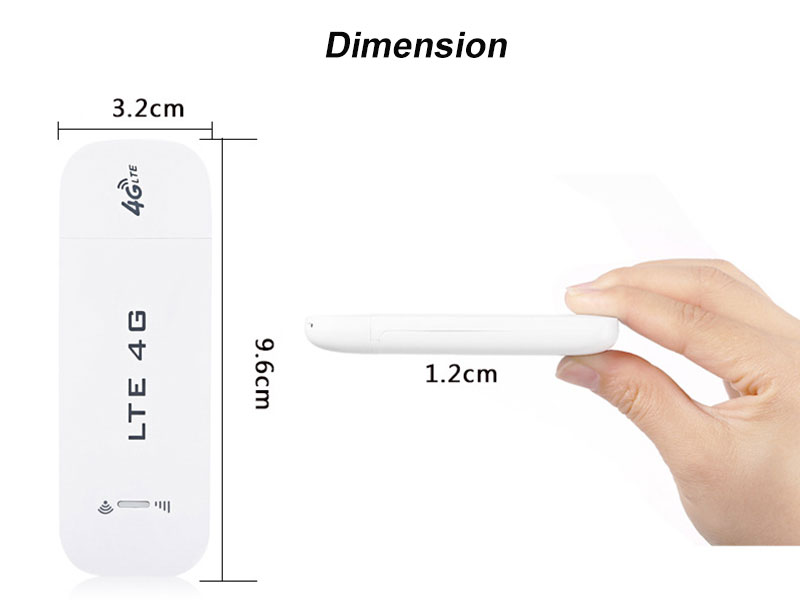

dimension | 96*35*13mm | |
weight | 29g | |
working temperature | -10 to +55℃ | |
working humidity | 10% to 80% | |
storage temperature | -20 to +60℃ | |
storage humidity | 5% to 90% |
