P700 Which Can Change 4G Wireless Network to RJ45 Cable Network

Share

Network Type: FDD-LTE, TDD-LTE, WCDMA/HSPA+


Specification

In recent years, the complexity of RF designs has significantly increased, particularly for broadband applications. This complexity, coupled with the rising costs and risks associated with development, has led customers to increasingly turn to modular solutions. It's common for WIFI Module Manufacturers to invest several years in close collaboration with IC manufacturers before a module becomes market-ready. This intensive cooperation ensures that the final product is optimized in every aspect. During production, the module undergoes a final calibration to achieve ideal RF performance.


Moreover, most modules come pre-certified for multiple countries, allowing customers to save both time and money during the final product certification process. As manufacturers scale up production, customers benefit from declining prices, making the integration of a module more economically attractive than developing a custom design, even at high volumes.


Getspeed's portfolio features highly experienced and renowned WIFI Module Supplier specializing in wireless technologies. Our strong partnerships with wireless chip manufacturers allow us to offer comprehensive support that goes beyond mere module specifications. We provide expert guidance and solutions tailored to meet the specific needs of our customers, ensuring optimal performance and seamless integration. With Getspeed, you gain access to cutting-edge technology and the assurance of working with industry leaders dedicated to innovation and excellence.


Welcome your consultation!

ModelP700 Which can change 4G wireless network to RJ45 cable network
Main chip setASR1803S
Network TypeFDD-LTE, TDD-LTE, WCDMA/HSPA+
Frequency Scope

LTE B1/B3/B8/B38/B39/B40/B41

(More bands can be added such as B2/4/5/7/20...)

TD-SCDMA B34/B39
WCDMA 2100/900MHz
Data RateLTE FDD/TDD (Cat. 4) DL 150Mbps, UL 50Mbps
3G HSPA+ DL 21Mbps, UL 5.76Mbps
3G TD-SCDMA DL 2.8Mbps, UL 2.2Mbps
Support SystemWindows XP,Windows Vista,Windows 7,Windows 8/8.1
MAC OS X 10.7+
Ethernet networkA RJ45 interface, 10/100M adaptive, Support WLAN
USIM/SIMMicro SIM card slot
SD CardSupport Micro SD memory extension, 32GB in max
LED2G/3G/4G signal indicator light,  WIFI status indicator lamp
Power supply modeDC 12V
PowerInput voltage: 12V/1A
maximum power consumption: < 2.5W
WIFI StandardProtocol: 802.11 b/g/n, up to 72Mbps
WIFI Frequency2412 MHz-2472 MHz
WIFI Security modeOpen, WPA-PSK, WPA2-PSK
Operation Temperature-20℃~+70℃
Operation Humidity10%-90%
Storage Temperature-40℃~+85℃

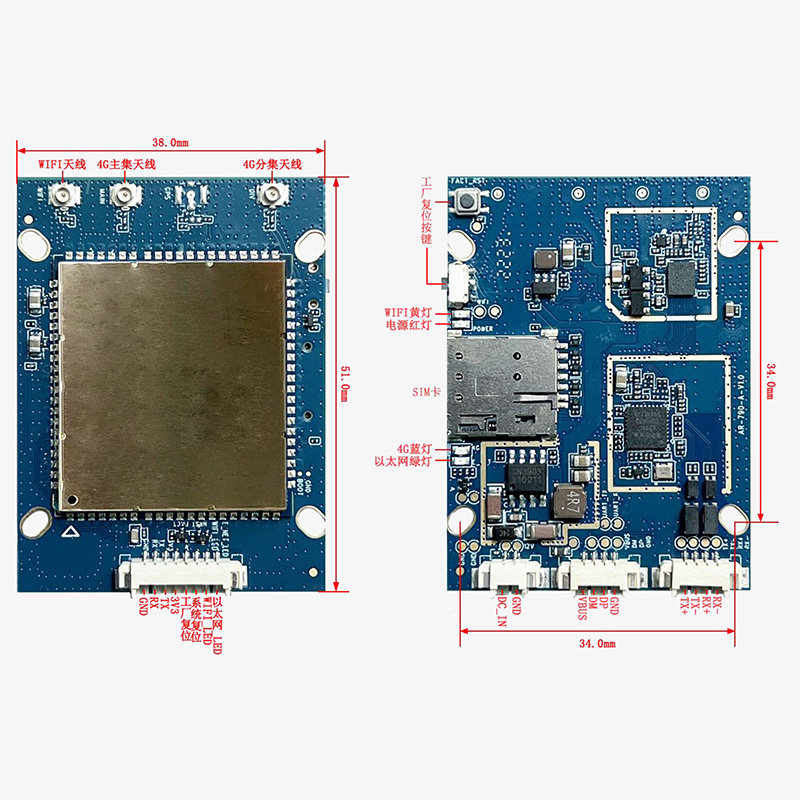

Dimensions/Weight51mm*38mm*1.0mm / 15g
