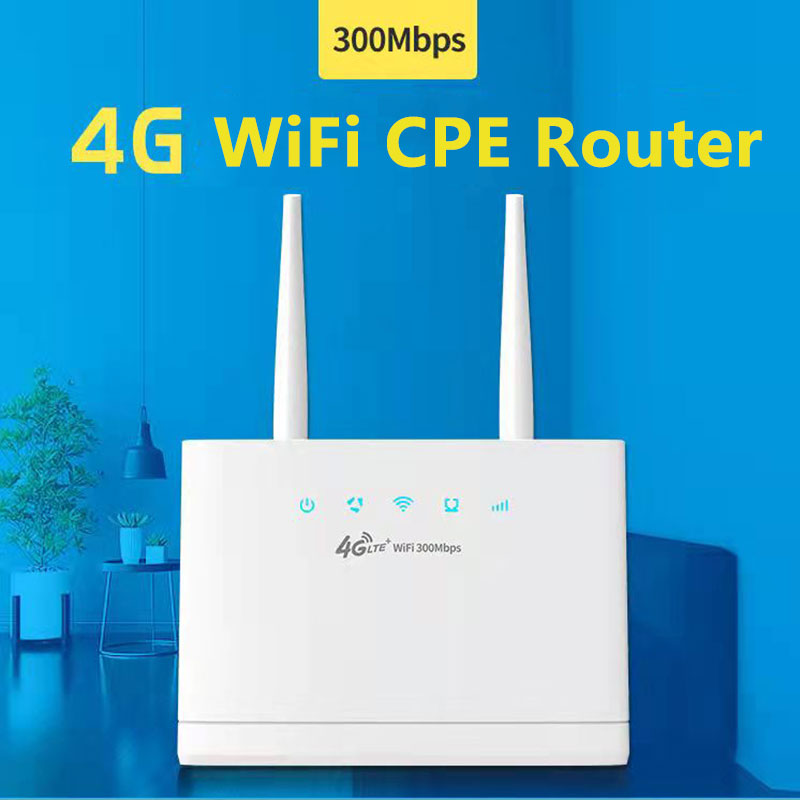

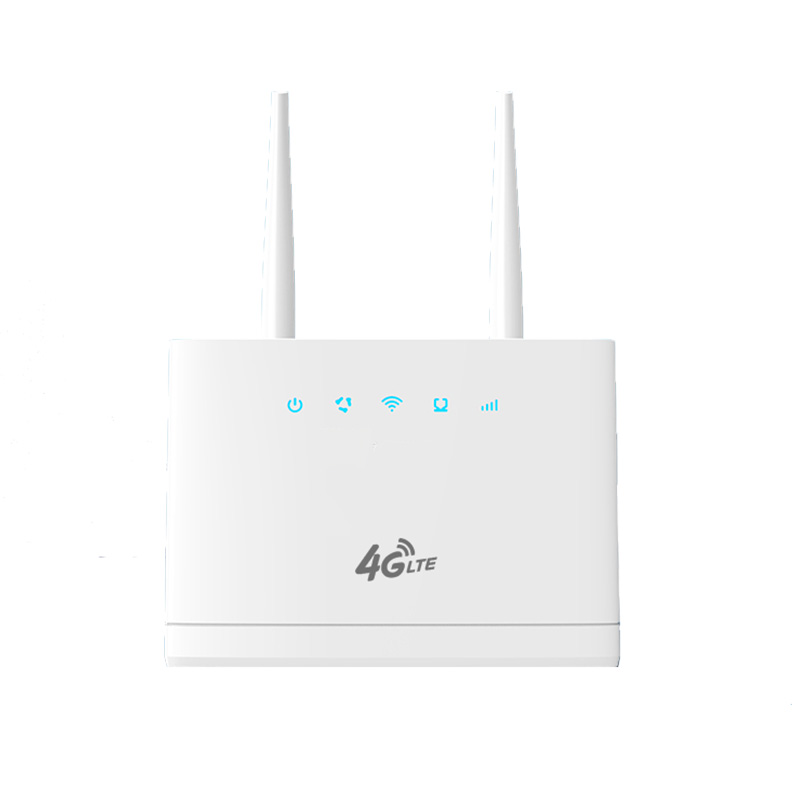

This is a CPE WiFi router with a SIM card slot and 4G LTE connectivity. It supports 2.4GHz WiFi with up to 150~300Mbps data transfer rate.
Specification
Selling Point of 5G Router With Sim Card Slot:

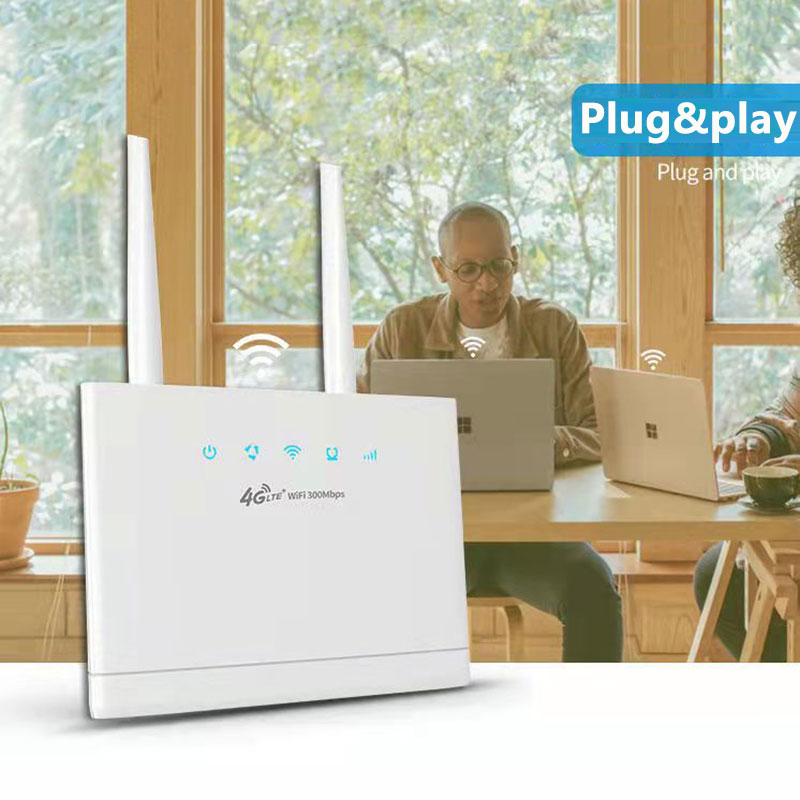

1. 【Easy to Use】Simply insert the Nano SIM card in the router, connect the power, and start enjoying stable and fast wireless networks.Just easily connect to WiFi whether it's your cell phone, laptop, desktop or tablet.

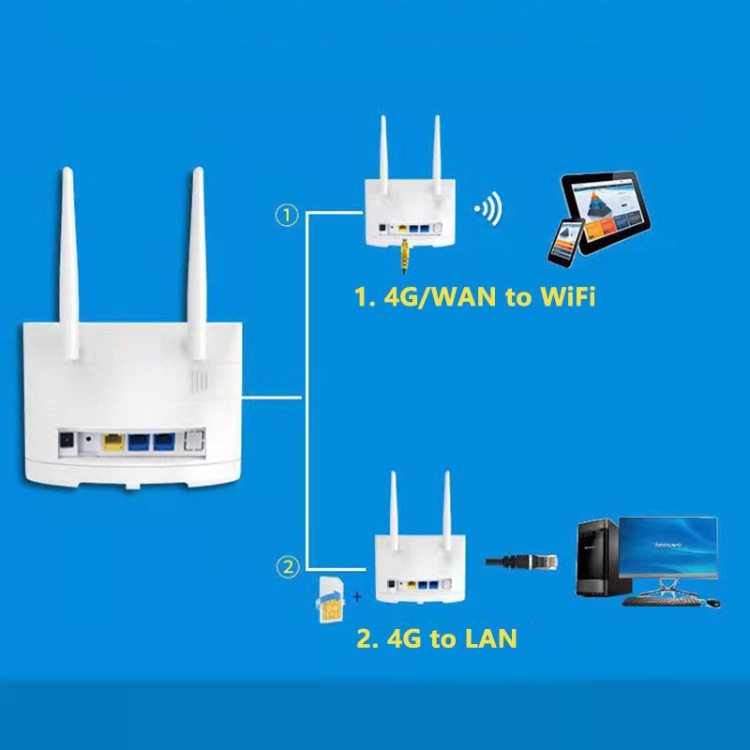

2. 【Converting 4G signals to LAN】There are 1Wan and 2 RJ45 Ethernet LAN port available which enable desktop computer access to internet via a network cable.
3.【High Gain Antenna】2 external high gain antennas greatly enhance the sensitivity of the router; it can improve the signal quality of 4G LTE and WiFi, which is convenient for establishing WiFi connection in apartments, trucks, remote mountain villages, or when temporary use of the Internet is needed.
4.【Multi-Device Sharing】The sim card dongle supports access to 32 devices. As long as there are WiFi-enabled devices, they can be connected and used, such as mobile phones, smart robots, iPads, sweeping robots, smart speakers, cameras, TVs, computers, etc.

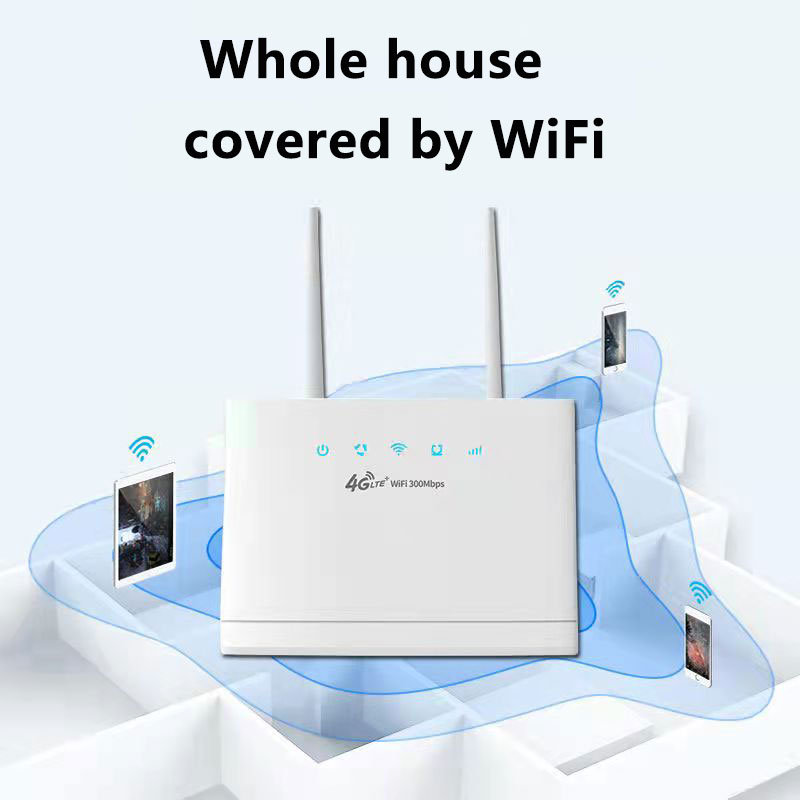

5.【Increase Coverage】Double external atenna. Increase WiFi coverage area and eliminate network dead angle.
Simply Introduction of 5G Router With Sim Card Slot:
This is a CPE WiFi router with a SIM card slot and 4G LTE connectivity. It supports 2.4GHz WiFi with up to 150~300Mbps data transfer rate.
The router is compatible with SIM card bands in Asia, Europe, America,Southeast Asia, Africa, and the Middle East.
● CN version: FDD B1/3/5/8+TDD B34/38/39/40/41+WCDMA B/1/5/8
● EU version: FDD B1/3/5/7/8/20/28+TDD B38/40/41+WCDMA B/1/5/8
● NA version: FDD B1/2/3/4/5/7/8/28/12/17/66+TDD B38/40/41+WCDMA B1/2/4/5/8 more frequency can be added if necessary.

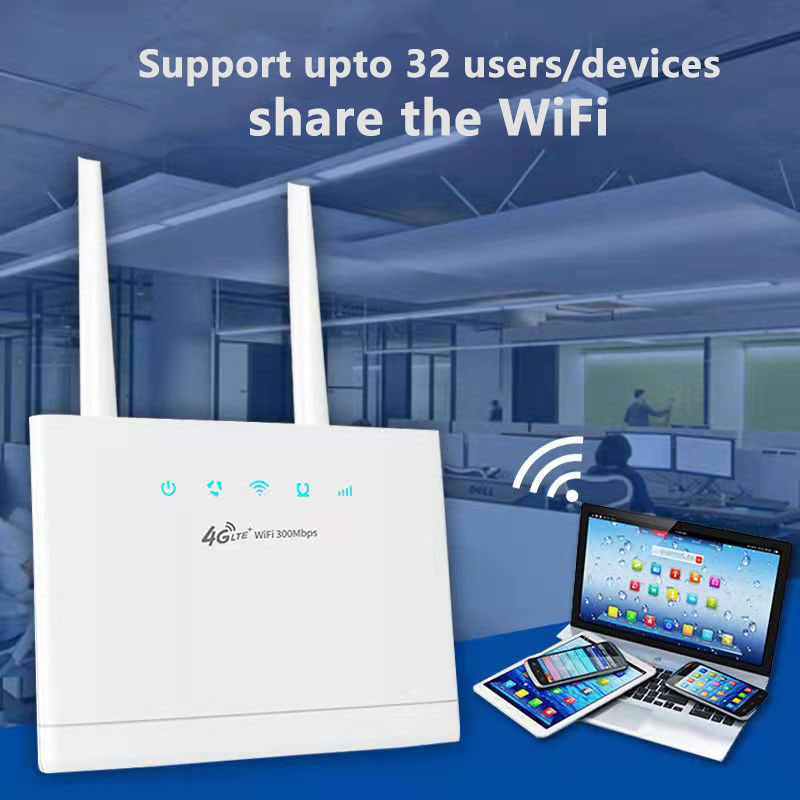

It supports 32 users at the same time, providing secure internet sharing service for multiple end users, suitable for smartphones, tablets, PCs.
4G CPE router comes with 2 external 5dBi high gain antennas to enhance the signal strength, so you can enjoy reliable wireless connection anytime, anywhere.
Main features of the product:
● High Compatibility: The 4G CPE router is compatible with SIM card frequency bands in the Americas, Europe, Asia, Africa, Southeast Asia and the Middle East.
● High speed: Download speeds up to 150Mbps. Upload speeds up to 50Mbps and wireless transfer rates of 300Mbps.It provides indoor and outdoor WiFi coverage, supports 802.11b/g/n, MIMO technology.

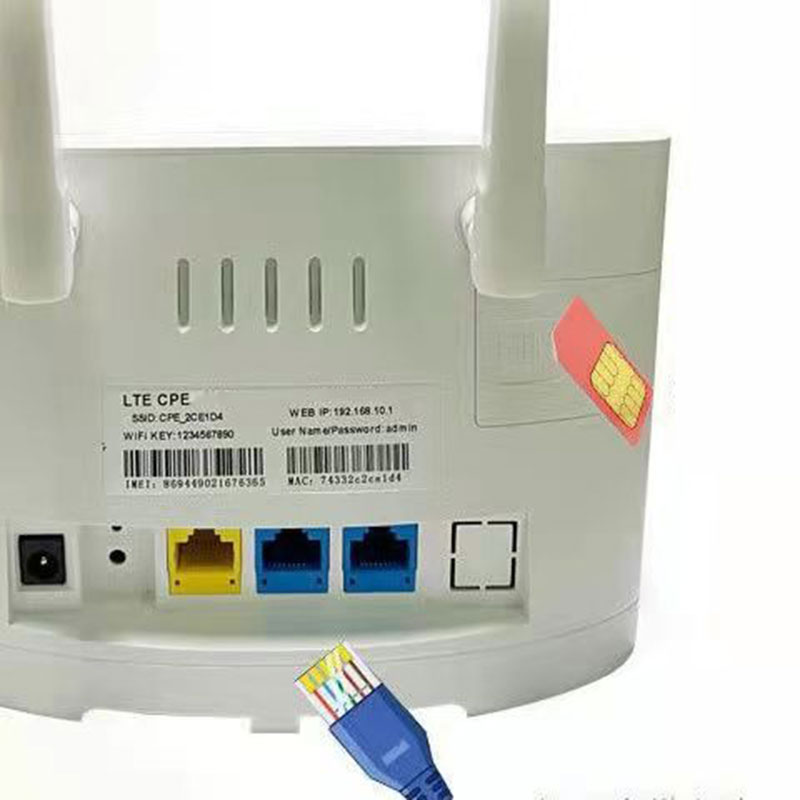

● Easy to Use: The WIFI wireless router has WAN and LAN ports, support wired connection, you can connect to the router through the network cable, you can also insert a SIM card to use 4G Internet access.
● Wide Application: The WIFI wireless router is suitable for installation in home, factory, office, warehouse, garden, parking lot, bringing convenience to indoor and outdoor places without WiFi.
How to Use:

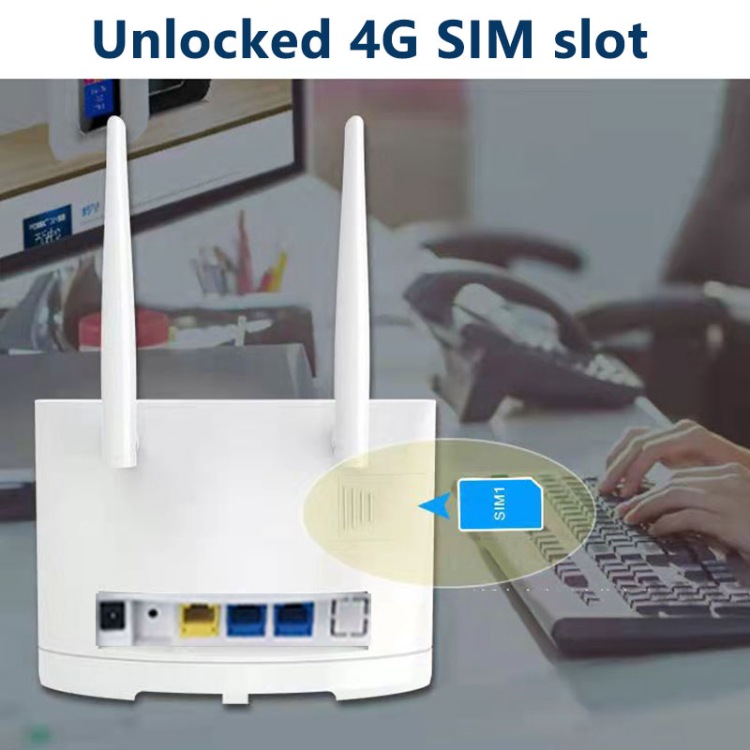

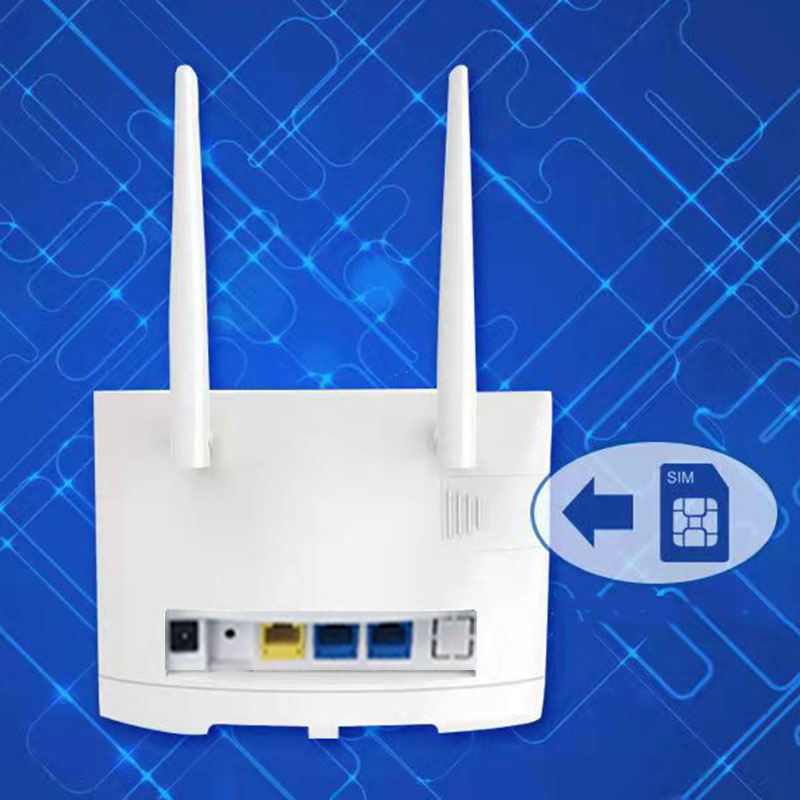

1. Push the SIM slot cover.
2. Insert the SIM card with the card core facing down
3. Plug in the power supply to obtain WiFi
4. Connect to WiFi and surf the Internet.
5. Connect to WiFi, open 192.168.1.1 in the browser to enter the background, here you can change the WiFi name and password or add APN.
Model No.:P28 | 4G CPE speed up to 150Mbps |
CPU | •CPU: ZT7520V3E/T/Qualcomm9x07 or ASR1803S |
Network | •4G LET 3GPP R9 CAT.4 •Transfer rate up to 150Mbps |
•4G FDD B1,B3,B5,B8(can add more frequency such as B5,B7,B8,B20,etc.) | |
•4G TDD B38,B39,B40,B41 | |
•WCDMA:B1,B5,B8 | |
• TD-SCDMA:B34,B39 | |
Wi-Fi | •IEEE 802.11b/g/n/ac support 2.4G |
•Wi-Fi Protected Access™ (WPA/WPA2)2 | |
Ports | •1* USB Type C |
•1* 2FF SIM+ 1 esim | |
•1* LAN or 1WAN+2LAN for option | |
•1* Reset | |
•2*4G antenna,1 WIFI antenna | |
Environment | •working: -20° to 50°C (-4° to 122°F) |
•storage: ‑40° to 85°C (‑40° to 185°F) | |

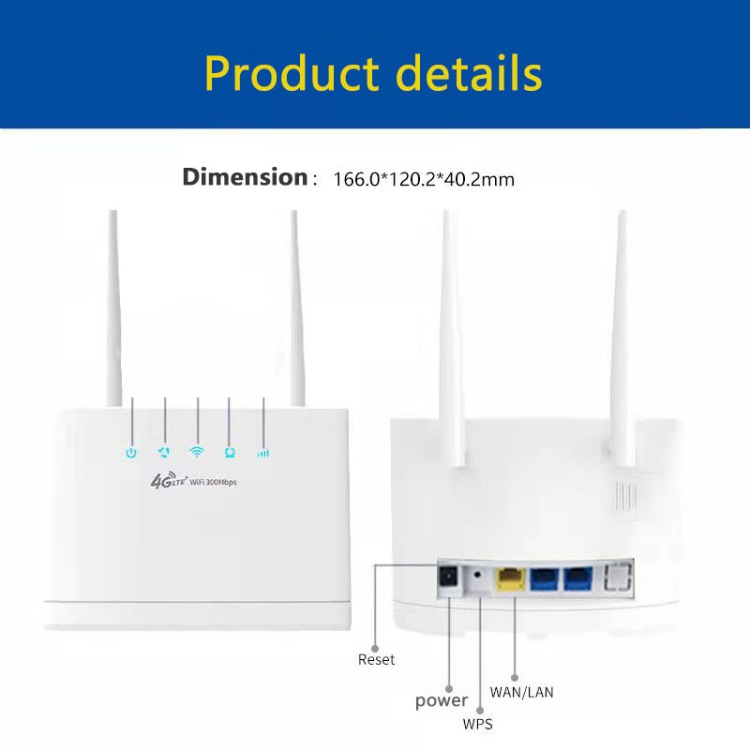

Dimension | •166.0*120.2*40.2mm |
Weight | •300g(including atenna) |
